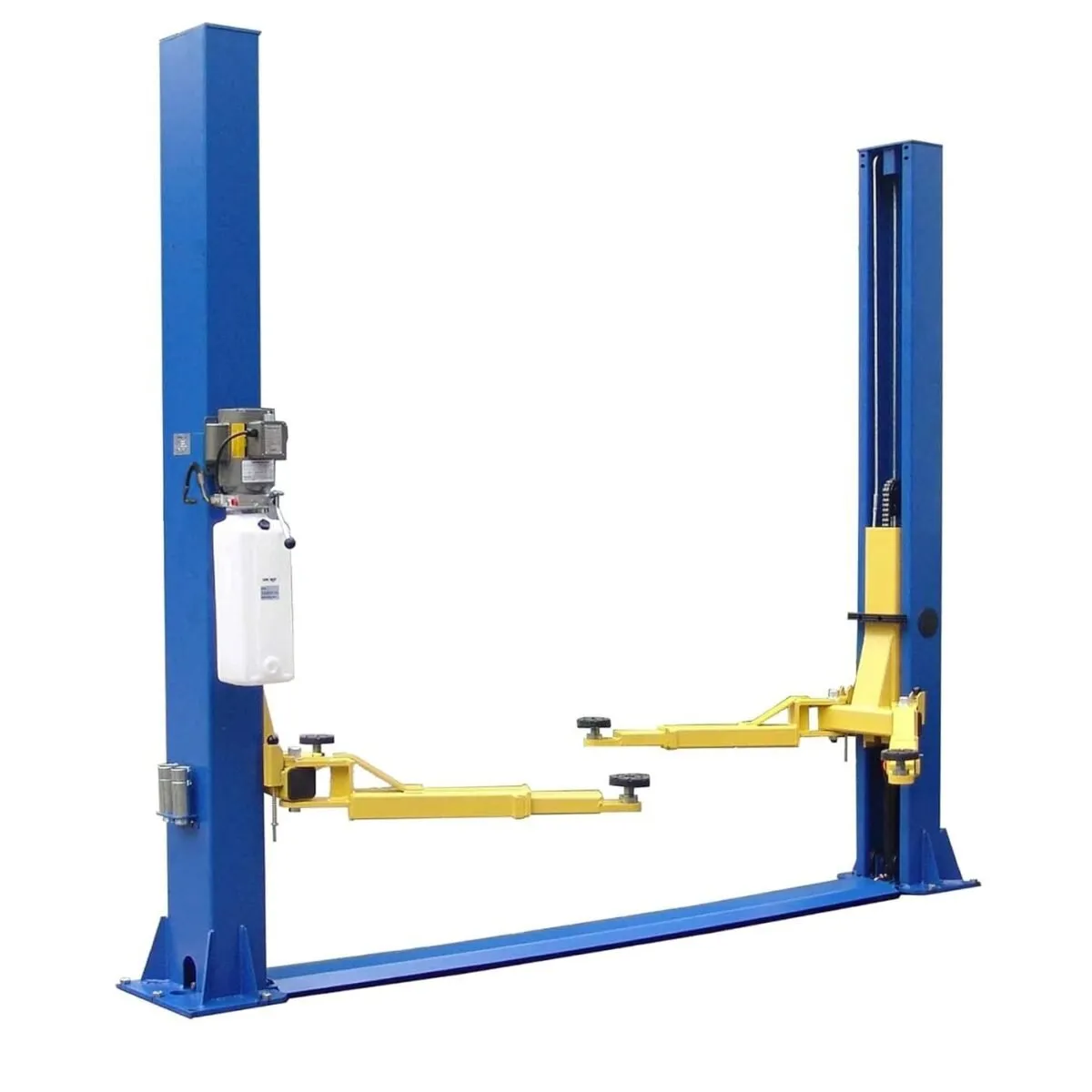

Auto Lift AL2-9K-FX 9,000 lb. 2 Post Floor Plate Car Lift

Symmetric design 9,000 lbs. lifting capacity. These auto lifts feature heavy-duty leaf chains, steel pulleys, and a high-strength cable equalization system—everything you’d expect from a quality lift. The low-profile ‘drop-in’ swivel pads have 1-1/2” adjustable height for flexibility.

Designed with reduced overall width due to front-side power unit mounting, internal hose routing with integrated hose guards, and rubber door guards for vehicle protection.

Key Specifications
Capacity: 9,000 lbs.
Overall Height: 111.9″
Width Overall (with Power Unit): 134.6″
Max Lift Height: 72″
Width Between Columns: 110.4″
Low Pad Height: 4″
Drive-Thru Clearance: 102″
Lifting Speed: 50 seconds
Design: Symmetric
Floor Type: Floor Plate
Front & Rear Arm Reach (min/max): 31″ – 45″
Long Arm Reach (min/max): Same as front/rear
Cable Diameter: 3/8″
Column Size: 7-1/4″ x 10-7/8″
Column Steel Thickness: 5 mm
Carriage Steel Thickness: 5 mm
Arm Steel Thickness: 6 mm
Power: 220V, 20 AMP, Single Phase
Shipping Weight: 1,265 lbs.
Details
Symmetric design with 9,000 lbs. lifting capacity
Heavy-duty leaf chain, steel pulleys, and high-strength cable equalization system

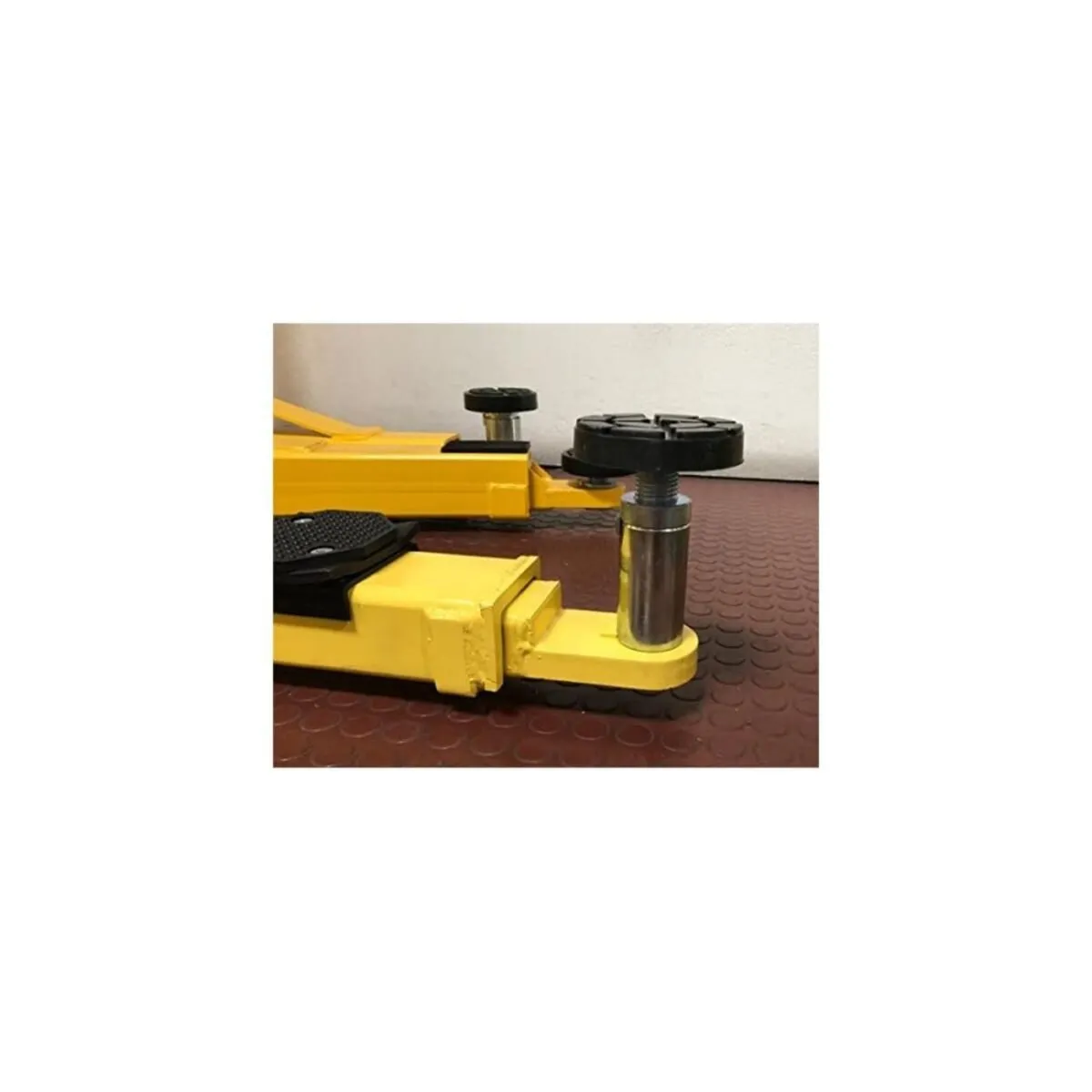

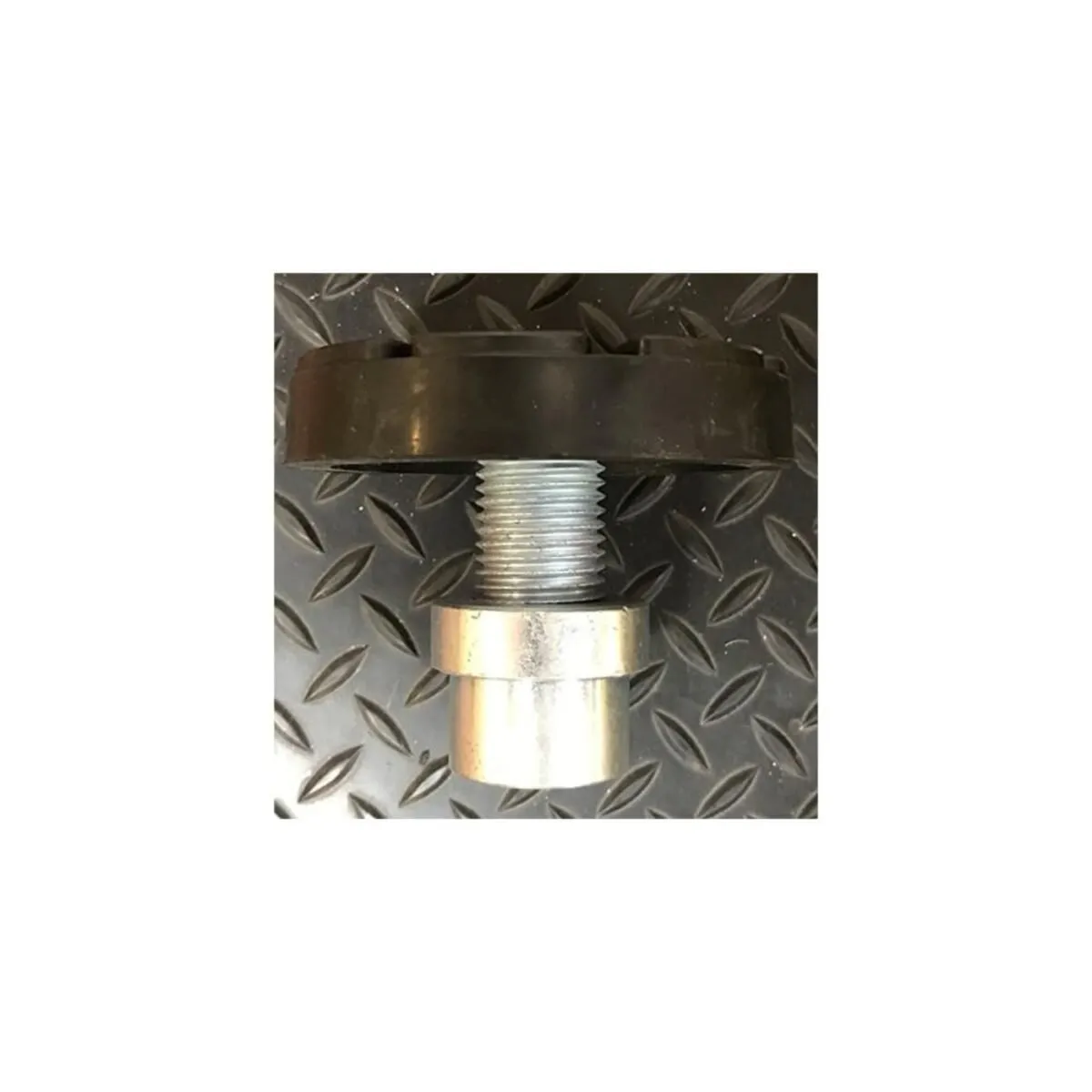

Low profile ‘drop-in’ swivel pads with 1-1/2” adjustable height
Reduced overall width with front-side power unit mounting
Internal hose routing with integrated hose guards
Rubber door guards to protect vehicle doors
Additional Information
Load Capacity: 9,000 pounds
Brand: Auto Lift
Item Weight: 1,320 pounds (598.74 kg)
Manufacturer: Auto Lift
