Atlas 9000 LB High Rise Scissor Lift

Atlas SLP-9K Full-Rise Scissor Lift – 9,000 lb. Capacity

The Atlas SLP-9K is a commercial-grade, full-rise scissor lift designed for shops with limited ceiling height while still providing a powerful lifting capacity of 9,000 lbs. With a maximum lifting height of 78 inches (6’6″), this lift is perfect for servicing SUVs, pickup trucks, and other vehicles in professional garages and workshops.

Its low-profile platform height (4.5 inches) and flush-mount capability provide a clean, unobtrusive appearance, making it an excellent choice for shop owners who want a sleek, space-efficient lifting solution. The adjustable width between platforms (up to 31 inches) ensures versatility for different vehicle frames.

The SLP-9K is equipped with a separate control panel, air-actuated safety locks, and UHMP wear blocks, ensuring long-lasting, high-performance operation.

Key Features & Benefits
9,000 lb. Lifting Capacity – Ideal for full-frame and unibody SUVs, trucks, and passenger vehicles.
Full-Rise Scissor Lift (78” Max Height) – Provides ample clearance for undercar repairs, wheel service, and maintenance.
Adjustable Width Between Platforms – Up to 31 inches, accommodating various vehicle types.
Flush-Mount Capability – Allows for a flat surface installation, creating a seamless, clean shop floor appearance.
Locking Approach Ramps – Converts into additional work surfaces when locked in a horizontal position.
10 Air-Actuated Locking Positions – Ensures safe and stable lifting at multiple height levels.
Separate Self-Contained Control Panel – Provides easy access and convenient operation.
Zerk Grease Fittings at Each Hinge Point – Enhances lubrication and longevity.
UHMP Wear Blocks – Maintains high-quality performance over time.
CE Certified – Meets international safety and quality standards.
Safety Lowering Limit Switch – Stops descent at 10.5 inches for added protection.
220V Single-Phase Motor (2 HP) – Ensures efficient and reliable operation.
Technical Specifications
Specification Measurement / Detail
Lifting Capacity 9,000 lbs.

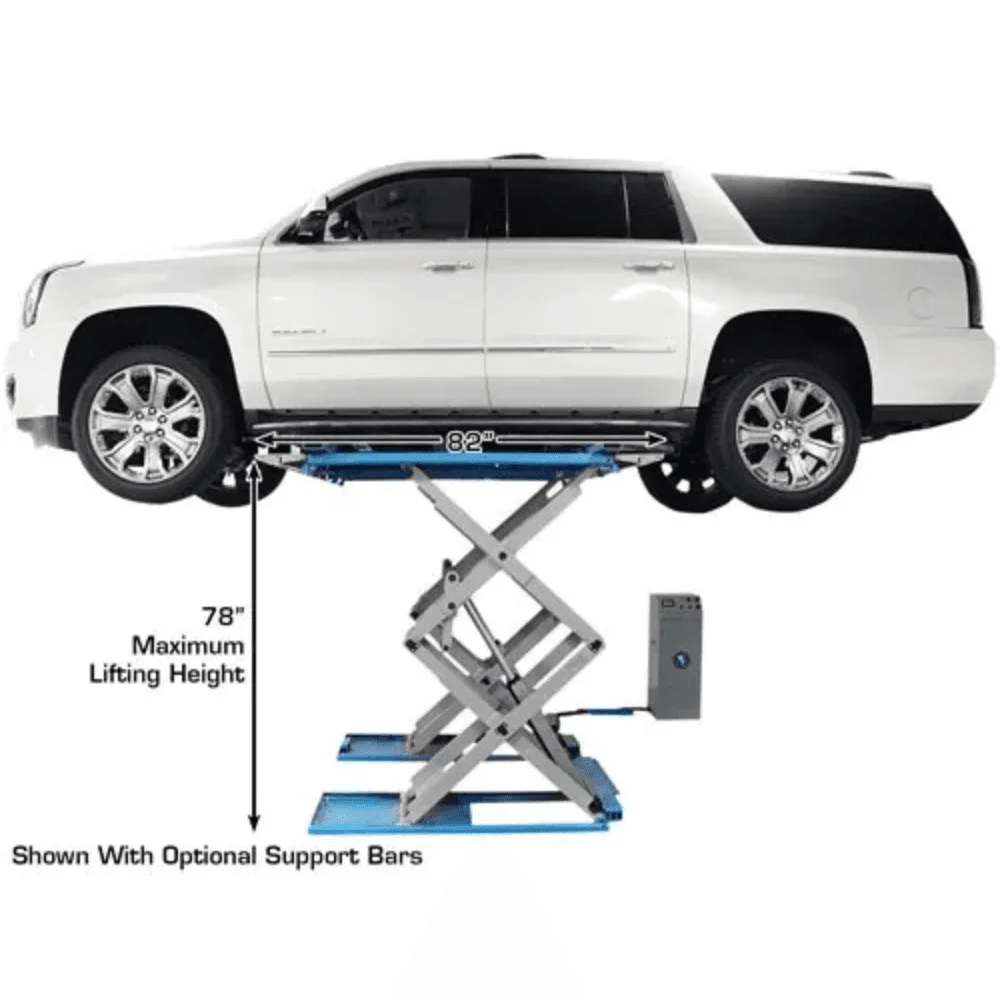

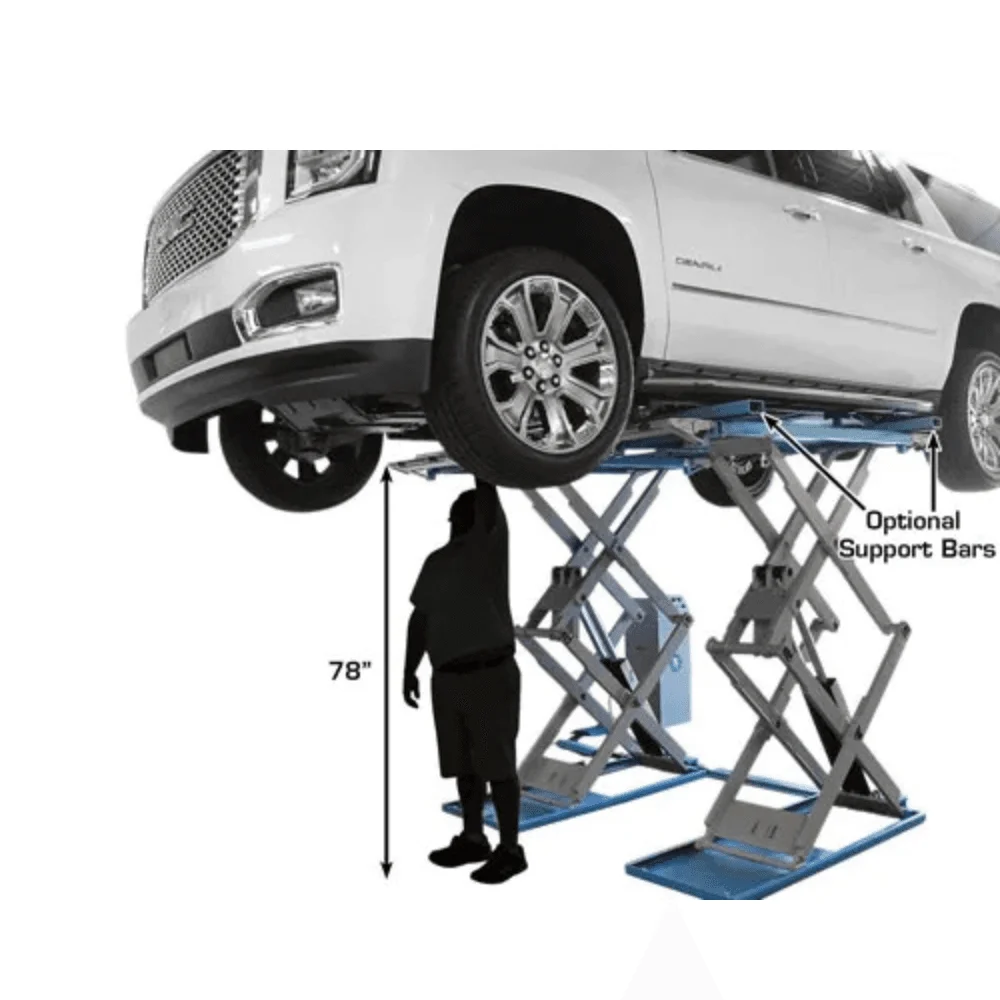

Maximum Lifting Height 78″ (6′ 6″)
Overall Length 82″
Maximum Overall Width 79 ½”
Lift Platform Dimensions 59 ½” x 24″
Lowered Height 4 ½”

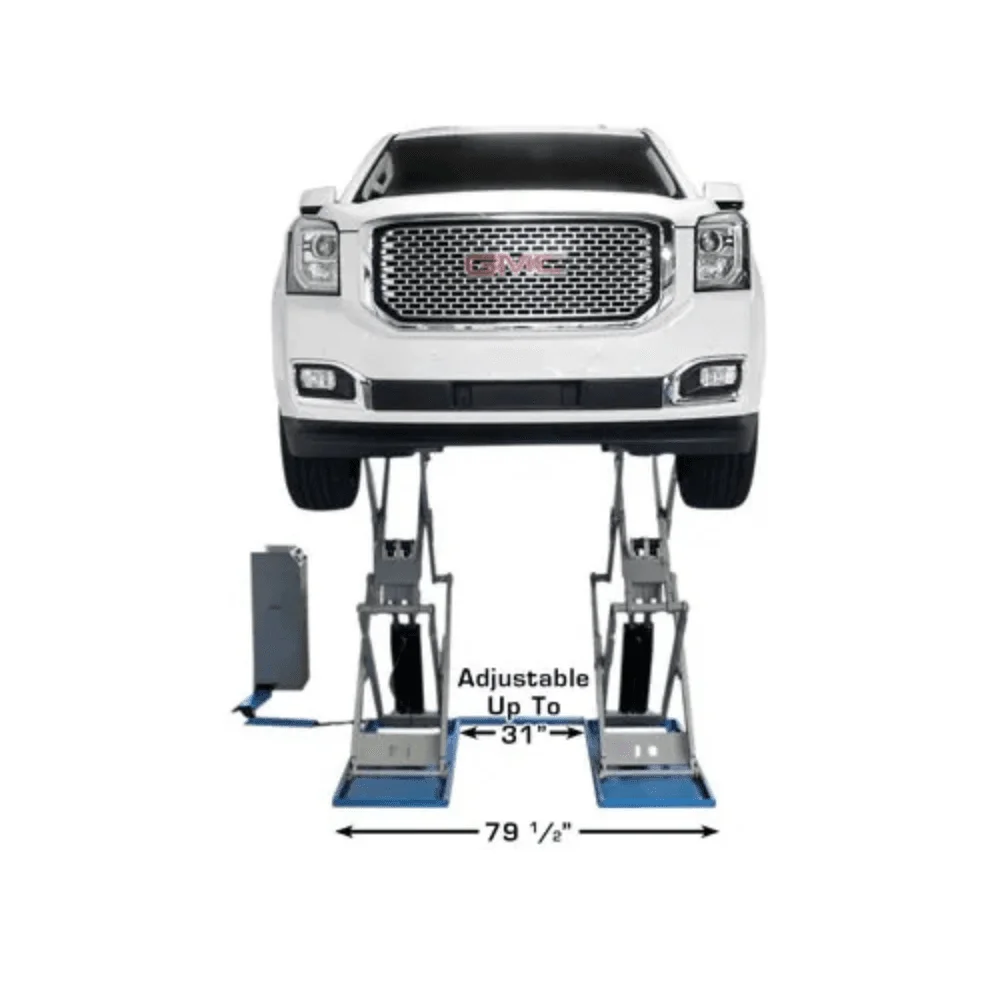

Width Between Platforms Adjustable up to 31″
Approach Ramp Dimensions 11″ x 24″
Power Unit 2 HP, 220V +/- 5% (209-231V), Single Phase
Breaker Requirement 30 Amp
Locking Positions 10
Locks Actuated By Air
Lifting Cylinders 4 (2 in Each Platform)
Oil Requirement 3.5 Gallons AW32/AW46
Shipping Weight 2,400 lbs.
Why Choose the Atlas SLP-9K?
The Atlas SLP-9K is an excellent full-rise scissor lift designed for shops with limited ceiling height while still offering maximum lifting power. With flush-mount capability, adjustable width, and robust safety features, this lift is perfect for professional mechanics and shop owners who need a clean, efficient, and powerful lifting solution.

For a durable, high-performance scissor lift that blends seamlessly into any workspace, the Atlas SLP-9K is the ultimate choice!
